Digitalization of Kernel Crushing Plant, IOI Edible Oils Sdn Bhd

The following link visualizes the overview Digitalization of Kernel Crushing Plant: https://ioieo.com.my/kcp/KCP_Digitalization_Video.mp4

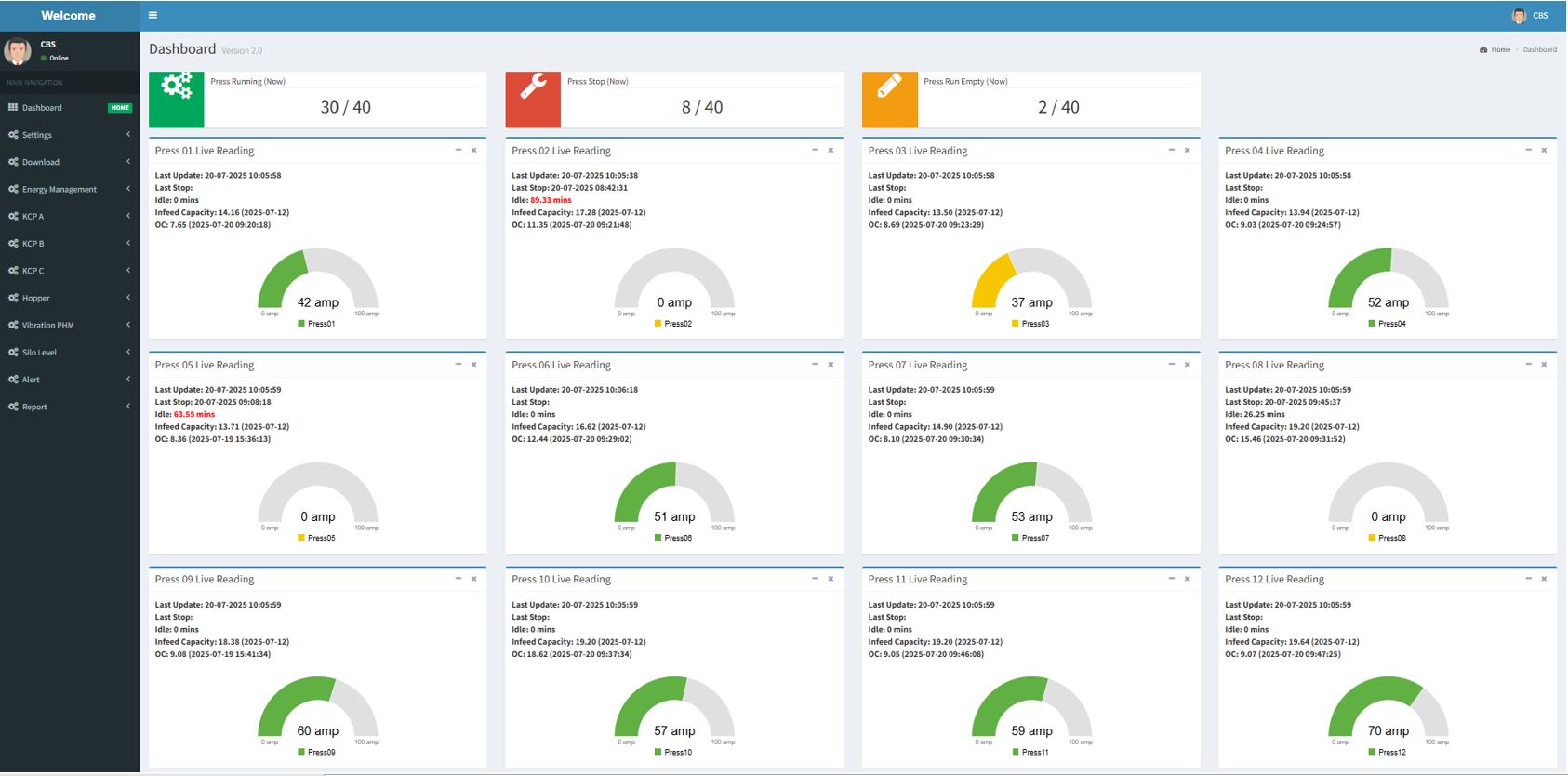

1. Live Operation Dashboard of Kernel Expellers with Downtime, Infeed Capacity and Quality Output Product Displayed. Colour Gauge indicating Kernel Expeller operating condition: Green indicating normal current condition, yellow indicating press in empty mode, red indicating high current condition.

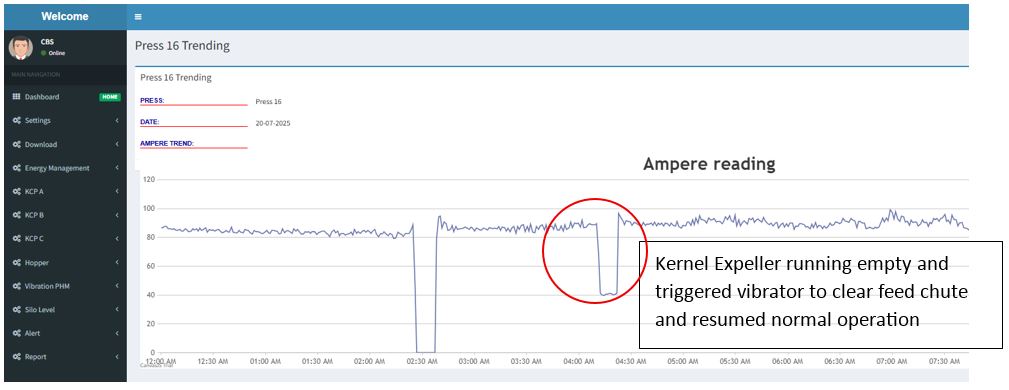

Live Current Operation of Kernel Expeller for Performance Monitoring

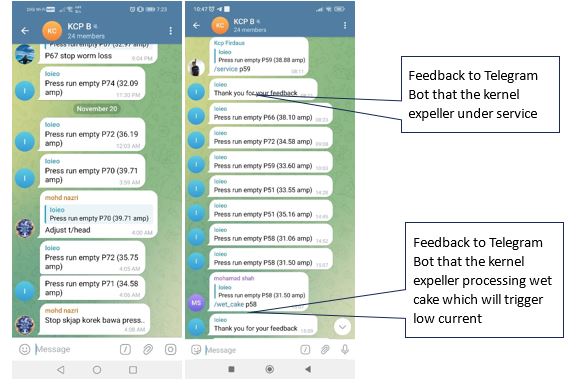

2. Notification via Telegram on Kernel Expeller Performance and Communication with Telegram Bot.

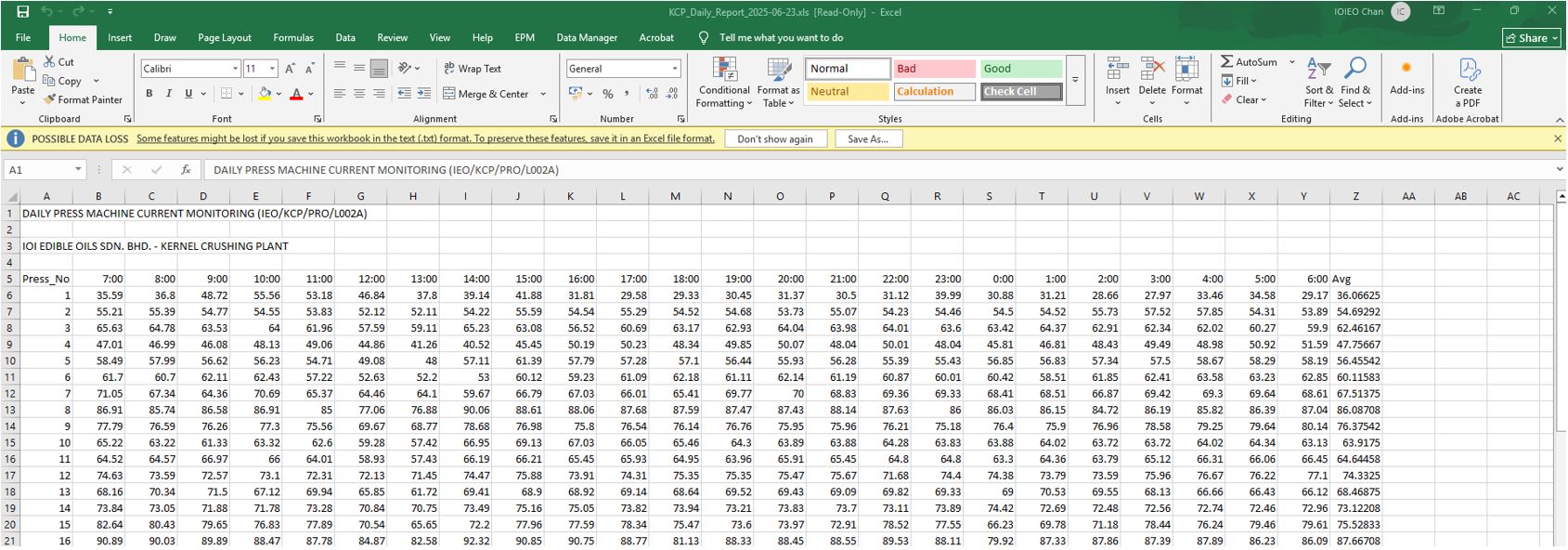

3. Hourly Live Current E-Report

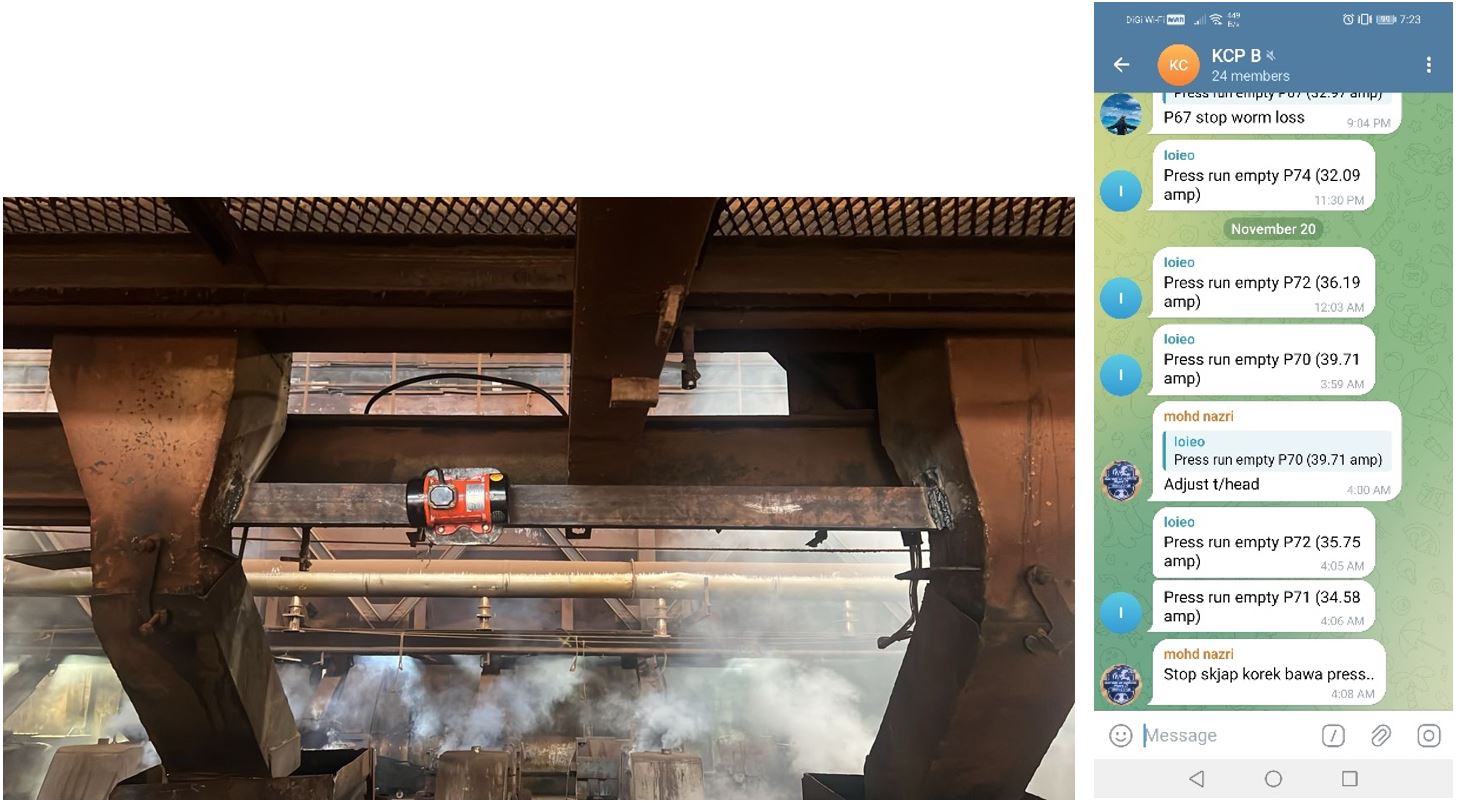

4. Vibrators Installed at Kernel Expeller Feeding Chute with Telegram Notification to Trigger Plant Operator whenever Kernel Expeller Running Empty

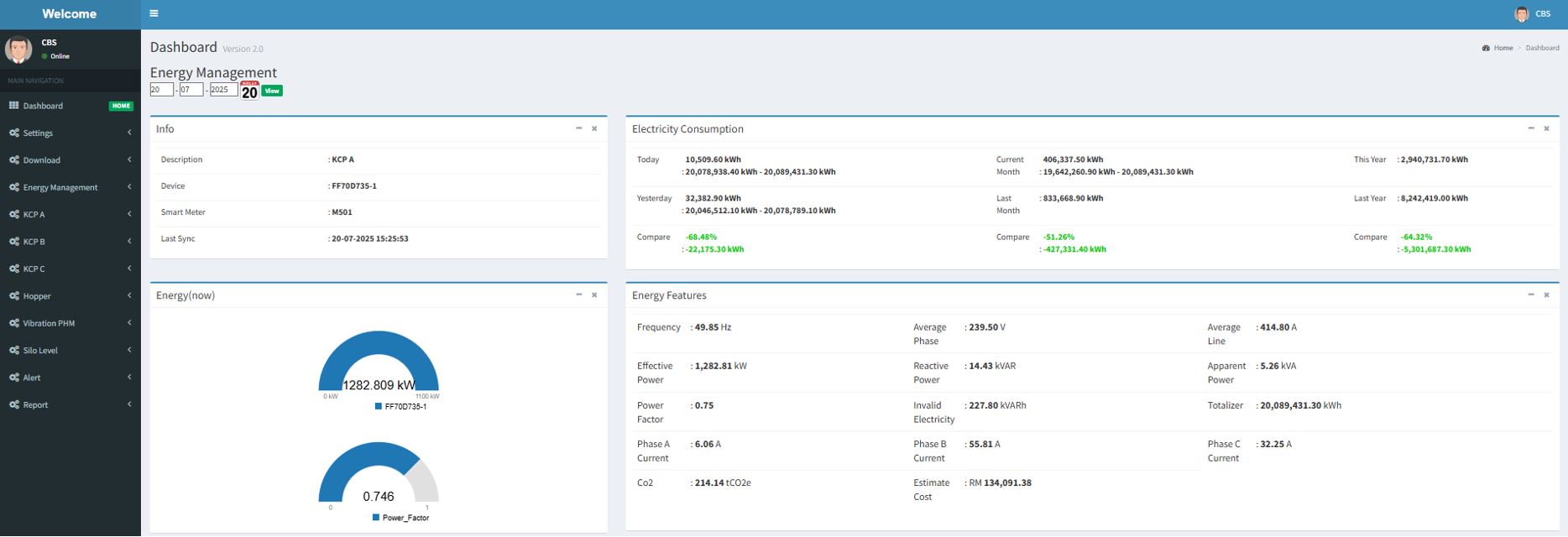

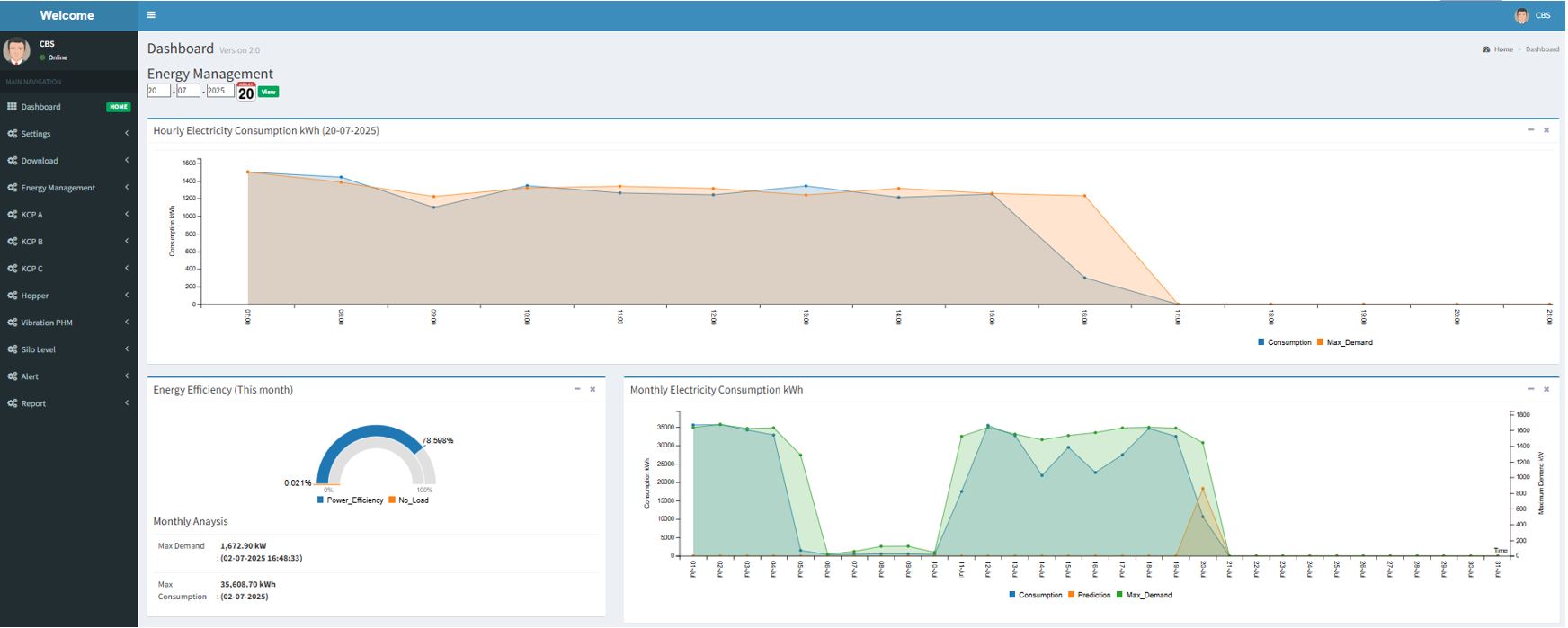

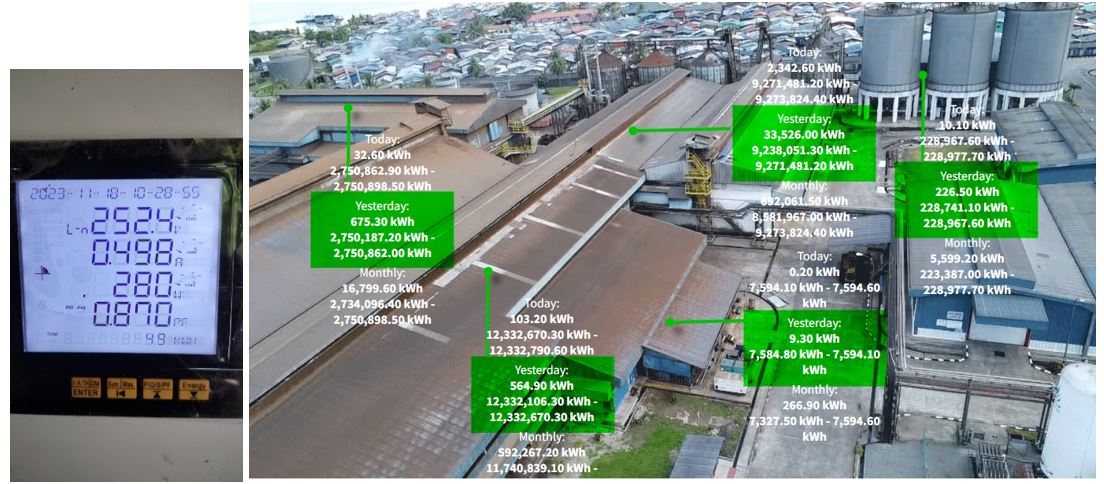

5. Smart Power Meter in Kernel Crushing Plant for Better Monitoring of Power Consumption in Each Section. With the power usage recorded, a load apportioning for each section in Kernel Crushing Plant can be analysed to identify which section consumed highest power.

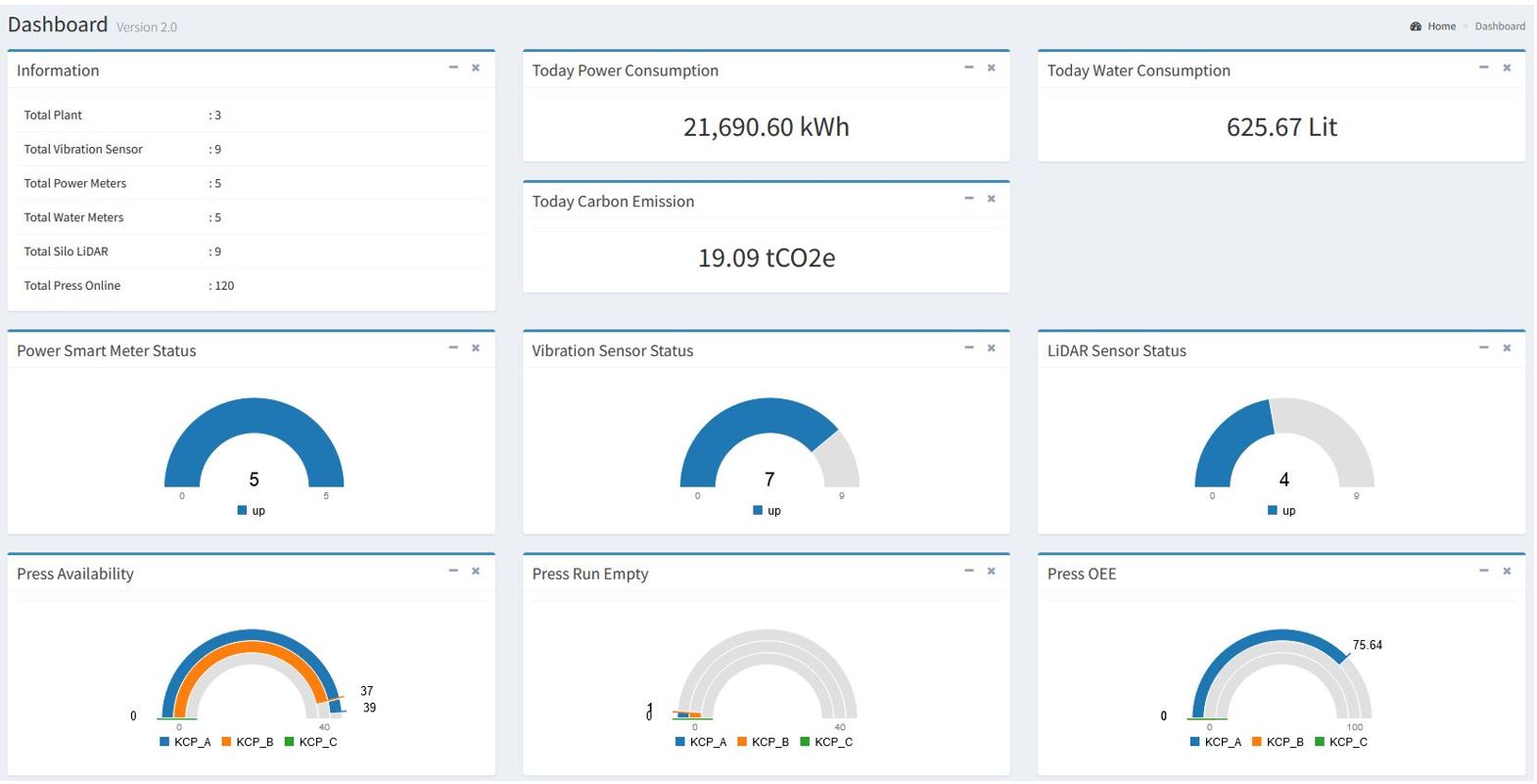

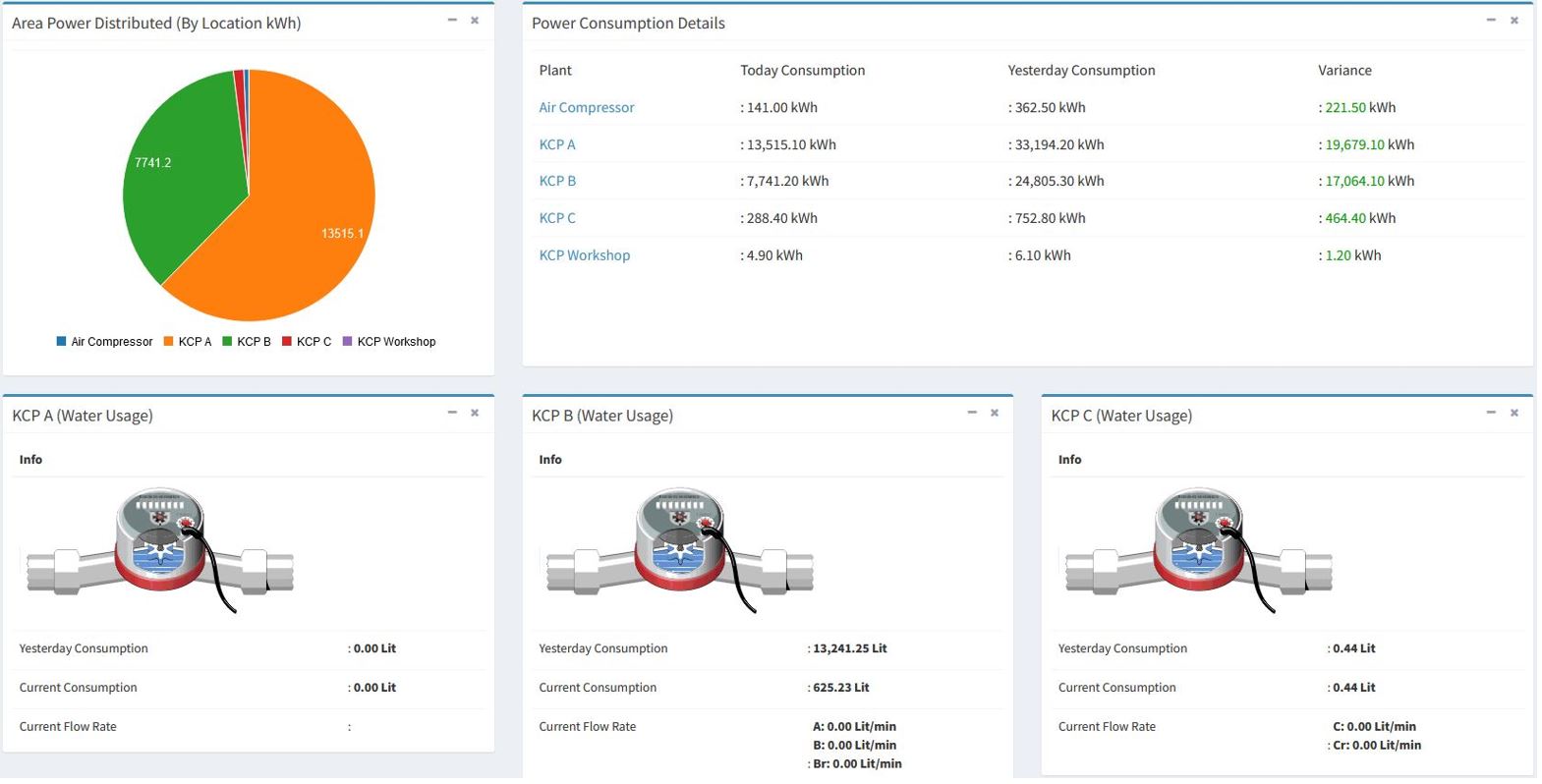

6. Dashboard of Utility Performance Monitoring – Electricity and Water Usage Monitoring

7. Kernel Expeller Running Hour Record based on Live Current Reading recorded in Daily Basis

8. Dust Plant Temperature Control System where this System will trigger alarm if temperature exceeded the limit set in system and cut-off blower to prevent fire incident

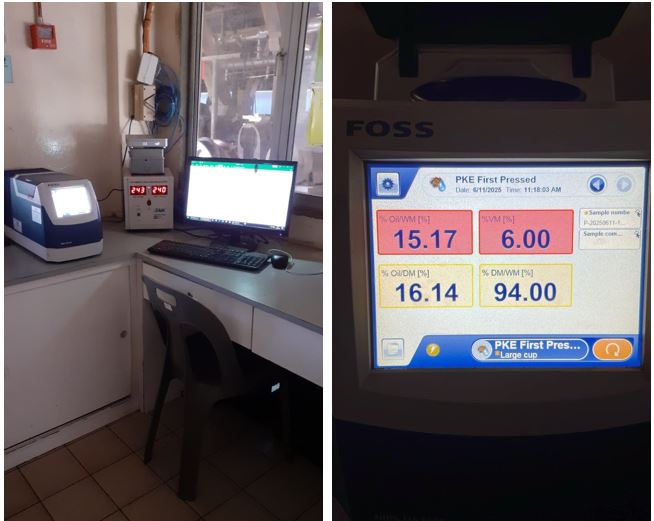

9. Digitalize NIR Machine

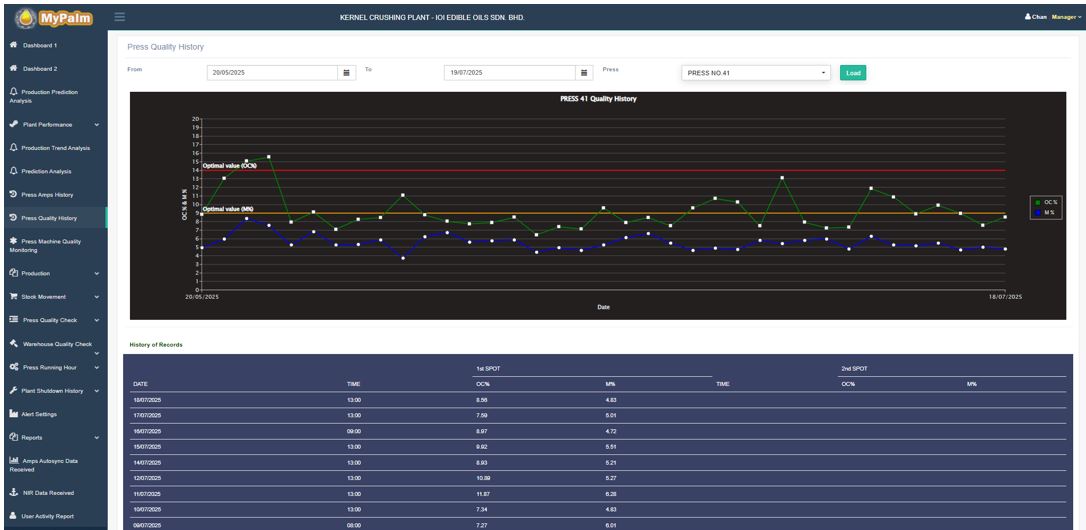

Output Product Quality Monitoring Record with Data Synchronized from NIR Machine
